GC1325-P3 Industrial 3D CNC Machine with 4x8 Table Top for Sale at Cost Price
GC1325-P3 Industrial 3D CNC Machine with 4x8 Table Top for Sale at Cost Price
Parameter:
Description | Parameters |
X,Y,Z Working Area | 1300*2500*200mm |
Table Surface | Aluminum table / Vacuum table with T-slot |
Frame | Heavy duty frame, tempering processing |
X, Y Structure | Taiwan HIWIN 25mm linear guide, helical rack |
Z Structure | Taiwan HIWIN Rail Linear guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle)2.5kw~3kw |
Spindle Power | 4.5kw air cooling spindles (optiona 6kw ) * 3 |
Spindle Speed | 0-18000RPM |
Drive Motor | Leadshine servo motor Japanese YASKAWA servo motor |
Reducer | Japanese Shimpo reducer |
Working Voltage | AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Command Language | G Code |
Auxiliary parts | Roller system |
Operating System | LNC control system Weihong controller Syntec controller |
Vacuum table | 7.5kw vacuum table |
Inverter | 7.5kw Fuling inverter |
Computer Interface | USB |
X,Y,Z repositioning Accuracy | ±0.02mm |
X,Y Resolution | ±0.01mm |
Software Compatibility | Type3/ QingdaoHaiXun, (Option: Artcam Software) |
Lubrication system | Auto |
Tool sensor | Auto |
Dust collector | 3kw double packages dust collector |
Optional parts | 9kw HQD ATC spindle, Boring head with blade |
Feature:
1. Function:A multifunctional model CNC machining center, suitable for routing,relief, drilling, cutting, edge chamfering, etc.
2. Construction:Whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
3. Spare parts: Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, German reducer, French Shneider electrical components, which guarantee stable performance and high quality.
4. Precision: Excellent spare parts, accurate precision detection instrument, which make sure the machine with perfect location and working precision.
5. High-speed: Adopt reducer direct design, high torque, high-energy, two Y axis motors, runs smoothly with high efficiency.
6. Table: Patented Double Layers of Multi-point Vacuum Absorbable Working Table, Large Suction by Multi-slot. Instant Adsorption, Instant Release, Strongly
Detailed Parts:
1. Weihong 95A-3L controller, easy to operate.
2. 3 pcs 6kw air cooling spindle, 4 different process woking.

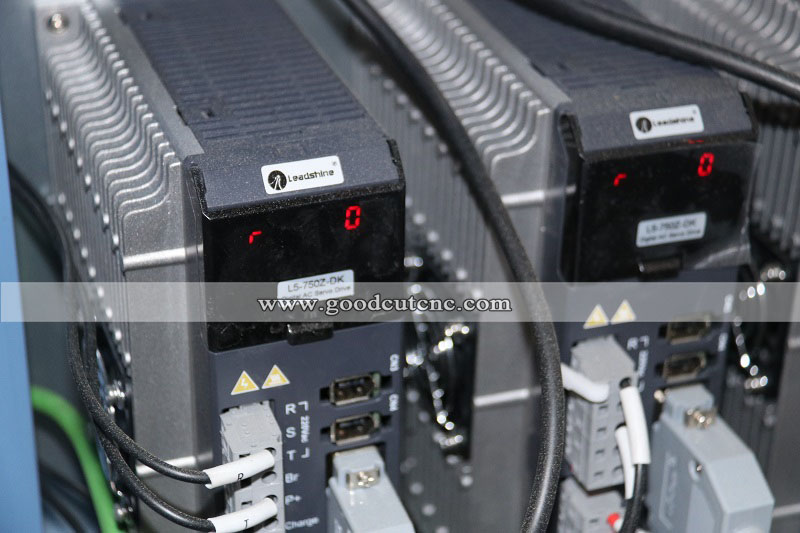

3. Leadshine 750w servo motor and driver
4. Fuling inverter
5. Positioning cylinder
6. Automatic oli lubrication
7. Machine transmission details
Applictions:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture, 3D engraving & Cylinder object engraving.
