GC1325S-P High Speed Marble Cutting Carving Stone Cnc Router Machine for Sale at Affordable Price
GC1325S-P High Speed Marble Cutting Carving Stone Cnc Router Machine for Sale at Affordable Price
Stone cnc router with saw, high speed cutting
Features
reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
Parameters
1 | Working area | 2500*1300*300mm |
2 | Spindle | 5.5KW HQD water cooling spindle |
Machine structure | 8mm thickness welded steel tube,cast iron vertical shafts and steel gantry | |
4 | Spindle speed | 0-24000rpm/min |
5 | Guide rail | Taiwan Hiwin linear square guide rail |
6 | Driving method | X,Y axis by helical gear rack,Z axis by TBI ball screw |
7 | Motors and drivers | Stepper motor450B, Leadshine drivers MA860H |
8 | Control system | DSP/Ncstudio/Mach3 |
9 | Inverter | Fuling inverter |
10 | Max.idling speed | 25m/min |
11 | Max.working speed | 12m/min |
12 | Machine structure | 8mm thickness Heavy duty thicker welded steel tube |
13 | Working voltage | 220-380V/50HZ |
14 | Control cabinet | Independent |
15 | Rotary device | yes |
Parts images

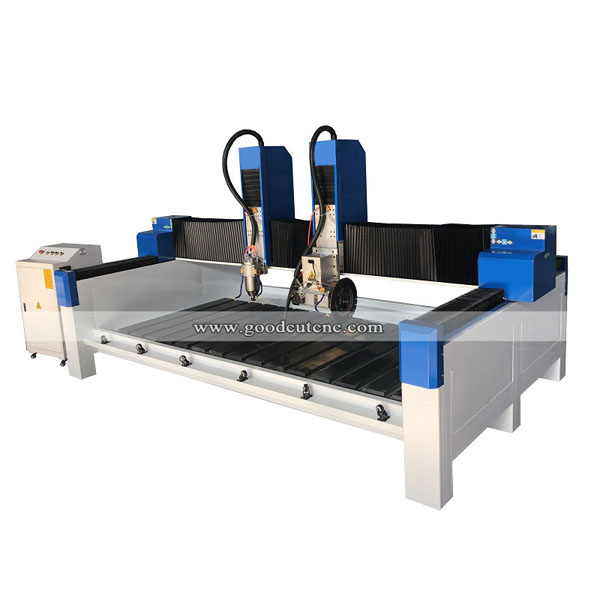

This stone cnc router machine designed with saw, high speed cutting

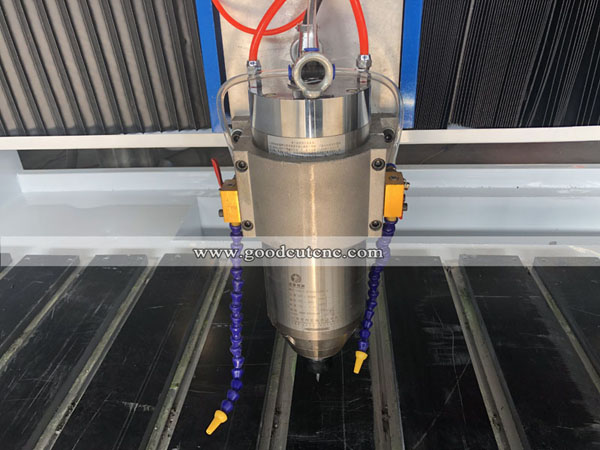

5.5kw HQD water cooled spindle
Dust protector and waterproof design ensure stable transmission.
Independent control cabinet
Heavy duty thicker and bigger welded steel tube frame--more stronger
Applications
1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.
4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
