GC-3030F GC-4040F GC-6090F GC-1390F Portable Fiber Laser Metal Cutting Machine for Sale at Affordable Price
GC-3030F GC-4040F GC-6090F GC-1390F Portable Fiber Laser Metal Cutting Machine for Sale at Affordable Price

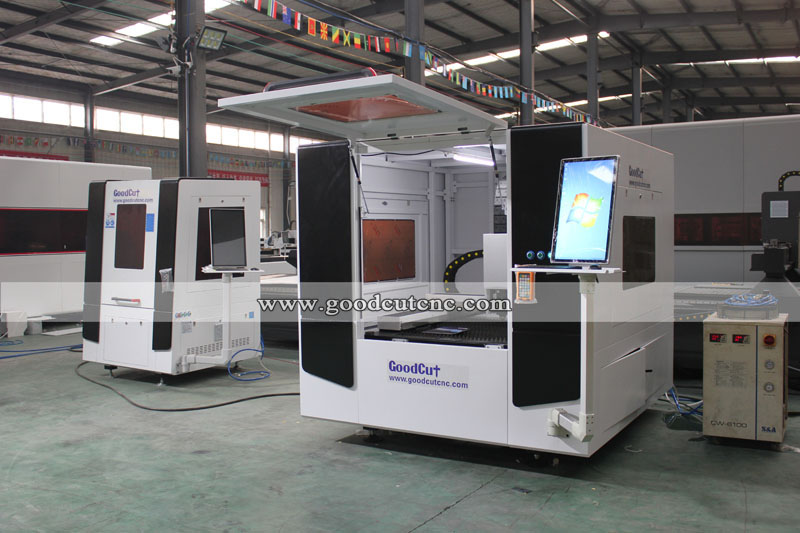

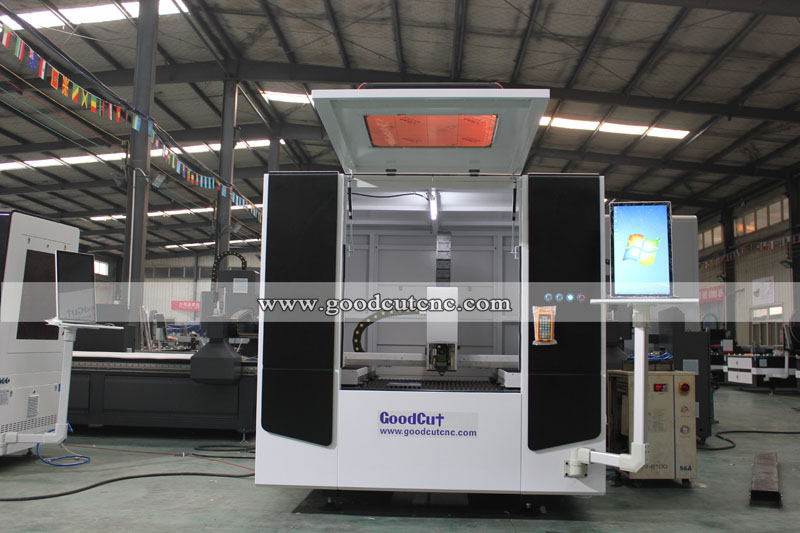

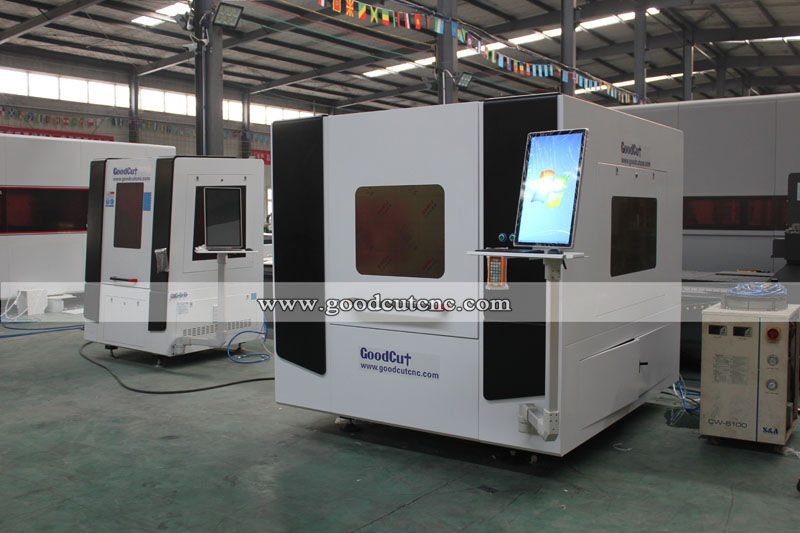

Portable fiber laser metal cutting machine GC-6090F is an entry level hobby metal laser cutter used to cut steel, titanium, gold, silver, aluminum, brass, copper, and more metalworking plans & projects in hobbyists, home shop, small business. The portable fiber laser cutting machine is designed for cutting metal jewelry, metal signs, metal tags, metal arts and metal crafts. Now the portable fiber laser cutter for sale at affordable price.
Machine components | Parameters |
Working Area | 300*300mm 400*600mm 600*900mm 1300*900mm |
Laser Power | Raycus 1000W/1500W/2000W/3000W etc (option MAX/IPG) |
Controller | Cypcut controller |
Laser Head | Raytools / WSX laser head |
Motor and Driver | Japan Fuji / Yaskawa motor and driver |
cutter laser Thickness | ≤6mm |
Maximum Running Speed | 80m/min |
Position Accuracy | ±0.05mm/m |
Position Speed | 20m/min |
Control System | Cypcut |
Position Type | red dot |
Power Consumption | ≤12KW |
Working Voltage | 380V/50Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Details:
1.France Schneider Electric Elements
It ensures the machining efficiency and machining accuracy, the stability and reliability of the equipment is greatly improved.
2.Linear motors are suitable for high-speed high-precision cutting, positioning accuracy on X, Y axises 0.01mm, repeated positionning accuracy on X, Y axises 0.004mm, maximum moving speed on X, Y axises 50m/min.
3.Japan Shjmpo reducer
4.Switzerland RAYTOOLS Laser Head
Optimization of the optical configuration Smooth and efficient air flow design
Rotary Knob focus adjustment. More easy and flexible. Adjust range 20mm, accuracy:0.05mm.
Drawer style mirror stand, changing protect glass faster and more easily.
Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect;
5.The Mini Fiber Laser Cutting Machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
Features and Advantages of Portable Fiber Laser Metal Cutting Machine
1. High cutting speed: cutting speed is more than 40m/min.
2. High Performance: It is suitable for high reflecting material cutting, such as copper and aluminum.
3. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
4. High Efficiency: Excellent high cutting speed, low operating and use cost, double return on your investment.
5. Low Maintenance: Fiber transmission, no need reflect mirrors, no need to adjust optical path, laser source lifetime is more than 100,000 hours, almost free maintenance.
6. Super flexible optical effects: compact design, compact and easy to flexible manufacturing requirements.
Applications of Portable Fiber Laser Metal Cutting Machine
Applicable materials:stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.
Application Industries: sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing, other manufacturing processing industries.
Package of Portable Laser Metal Cutter
1. Strong water resit bottom in plywood.
2. Laser source (separated plywood case) and spare parts on the laser bed.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
Pre-Sale Service of Portable Metal Laser Cutter
1. Free sample cutting service:For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.
2. Progressing Solution Design:According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
3. Customized machine design:According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.
