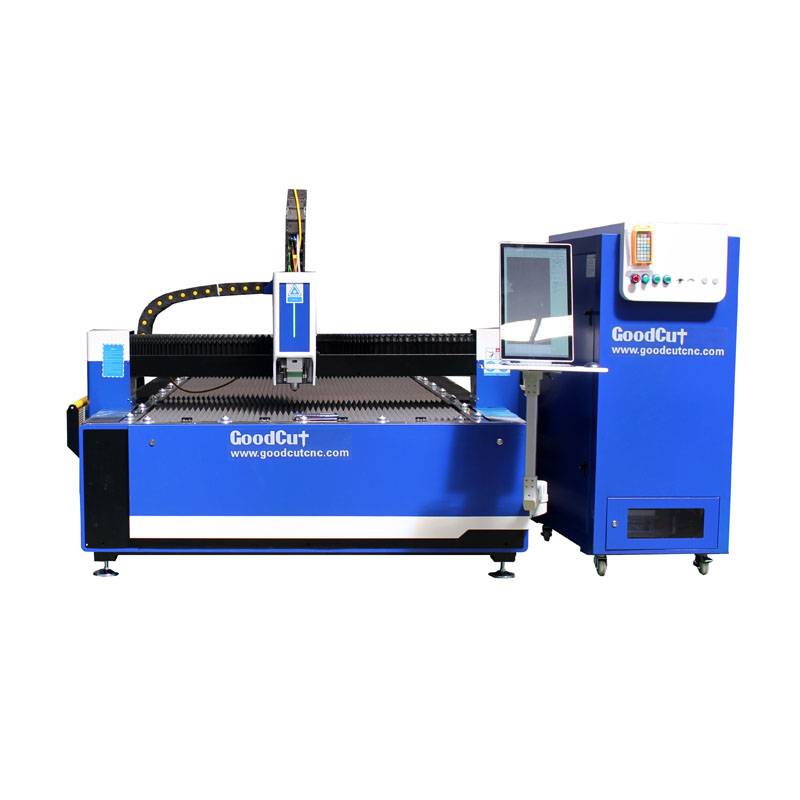

GC-1530F Raycus/Max/IPG Fiber Laser Metal Sheets Cutting Machine with Cypcut Controller

2 reviews / Write a review

$18,300.00

Product Code: GC1530F

Reward Points: 200

Availability: In Stock

Inquiry

Email Inquiry WhatsApp Chat WhatsApp Chat

Parameters:

MODEL NO.	GC-1530F
Brand	GoodCut
Processing area	1500mm*3000mm customized sizes are welcomed
Fiber power	1000W/2000W/4000W/6000W/8000W/15000KW/20000KW
Laser souce	Raycus/Max/IPG
Cooling mode	Water cooling and protection system
Resetting positioning accuracy	±0.01mm
Control system	Cypcut controller
Compatible Software	CorelDraw/AutoCAD/Photoshop/AI …
Whole machine size	Machine：440023601500mm Rittal：17501150750mm
Max traveling speed	110m/min
Driver system power	Y=750W; X=750W; Z=400W

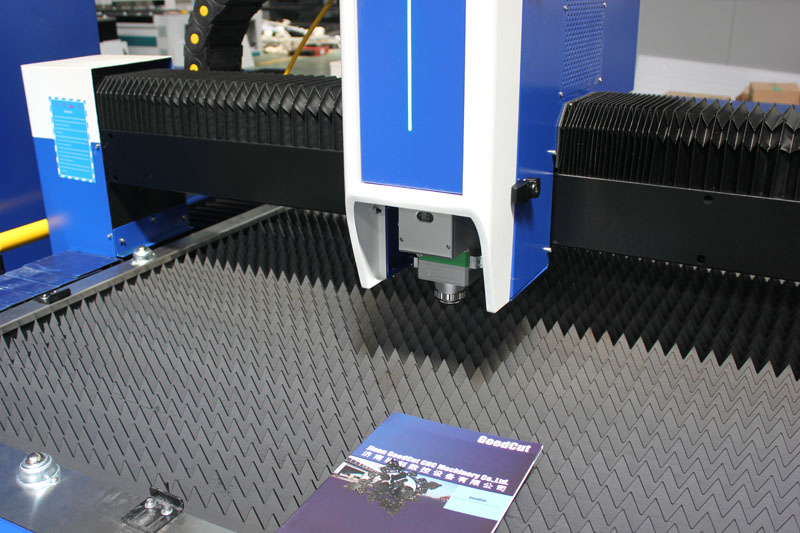

Laser head	Raytools
Transmit system	Dual Rack & Pinion type
Power supply	380V/50Hz/60Hz
Operating humidity:	5-95%
Gross weight	3200KG

Advantages:

1. Quality guarantee:Support after sale service, 3 years machine warranty.

2. Intelligent Dual-drive: Adopt gantry dual servo motor drive system and synchronous dual drive to effectively ensure high speed, high precision and high stability of the machine during cutting.

3.Imported Transmission Parts: Choosing high-end parts can ensure the high-speed cutting accuracy of the equipment for a long time.

4. Automatically adjusted focus point, suitable for a variety of focal lengths, flexible cutting, high-speed leapfrog, Real-time monitoring and intelligent advanced fault warning.
