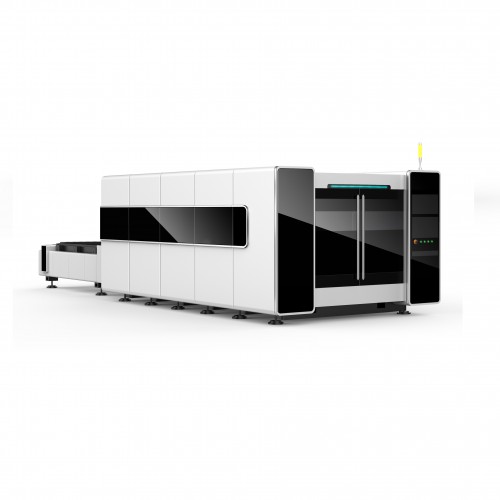

GC-1530FC-D 3KW 12KW 20KW 30KW IPG High Power Fully Enclose Fiber Laser Cutting Machine Manufacturer Price

GC-1530FC-D 3KW 12KW 20KW 30KW IPG High Power Fully Enclose Fiber Laser Cutting Machine Manufacturer Price

Feature:

1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.

2. Configure with Taiwan HIWIN linear rail, to ensure durable and high precision for long time processing.

3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.

4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.

5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.

6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.

7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressure detection, more simple to use.

8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.

9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

What Is IPG Fiber Laser Cutter?

IPG fiber laser cutter is a type of automatic industrial laser cutting system with 12000W IPG laser generator and CNC controller for sheet metal fabrication with high speed and high precision. It is a high power laser cutting machine for thicker metal sheets, including carbon steel sheets, stainless steel sheets, aluminum sheets with the maximum thickness of 50mm, and the maximum cutting thickness of non-ferrous metal sheets (such as copper and titanium) is 20mm. The maximum cutting speed for thin metal sheets can be up to 80m/min. With higher IPG laser powers such as 15000W and 20000W, it can cut sheet metals up to 100mm thickness, and the cutting speed will be as faster as 100m/min for thin metals.

IPG is the world's largest manufacturer of fiber laser generators from USA, Germany, and Russia. It has become an absolute leader in fiber laser generators.

The IPG product line is rich, covering high, medium and low power fiber laser generators and amplifiers.

IPG fiber laser generator refers to a laser generator that uses rare-earth-doped glass fiber as the gain medium. Fiber lasers can reach unprecedented power.

IPG fiber laser generators are low-cost, replacing traditional laser generators that are unstable or high maintenance costs. The flexible light guide system of fiber laser is very easy to integrate with robots or multi-dimensional workbenches.

IPG fiber laser generator is small in size, light in weight, and movable in working position.

IPG fiber laser generators perform better than traditional lasers in industrial applications. It has the best wavelength and best beam quality for metal fabrication.

The IPG fiber laser generator has a long service life and is maintenance-free. Due to its extremely high stability, it greatly reduces the requirements for laser quality monitoring during operation.

Simply put, it is excellent beam quality under high power, excellent electro-optical efficiency under high beam quality, and extremely small size, mobility and flexibility under high power and high beam quality.

High power is the advantage of IPG.

A large number of IPG high-power (>1KW) fiber lasers have been used in industrial fields such as automobile manufacturing, shipbuilding, offshore platforms and oil pipelines, aerospace and technical processing all over the world.

In Japan, thousands of IPG high-power fiber lasers have been sold to customers including Toyota, Mitsubishi, and Sumitomo.

The successful application of these lasers shows that IPG fiber lasers have matured and become one of the technical tools of the manufacturing industry, especially in metal fabrication (cutting, welding, cladding, rapid prototyping).

Features and Advantages of High Speed 12KW IPG Fiber Laser Cutter for Sheet Metal Fabrication

1.High rigidity machine bed sequence welding. It is made of high quality carbon structural steel and section steel welded together. After 8 hours of heat treatment at 600℃, it is cooled in the oven for 24 hours.After stress annealing, rough machining, and then vibration aging treatment, completely eliminate welding And the processing stress is large, the rigidity is good, the precision is high, may keep the normal use 20 years does not deform.

2. High stability: The design of the fiber laser optical path improves the beam quality while ensuring high-power laser output. The beam is transmitted in the optical fiber without contact with the air to avoid polluting the optical path, and has long-term stability.Therefore, large laser cutting machines can be used in industrial environments with longer service life and higher requirements.

3. High-speed dual-motor exchange table:The independent movement of the two tables is unrelated, the accuracy is not affected by each other, and there is no need to pause to clean the residue, which is more efficient and convenient.

4. Fully enclosed structure: environmentally, user friendly, and safer.

Germany IPG laser generator, more stable, higher precison, energy saving, longer lifetime than normal generator.

• High photoelectric conversion rate can reach 45%, other brands are only about 25%. Save much electricity cost.

• German brand, good quality, laser power weakened slower than other brand.• High market share, a certain degree of reaction to brand strength and quality.

• Low failure rate, only 3%.

• Light power can be seen in real time.

• After-sale service spots all over the world, problems can be resolved in time.

Applications

It is suitable for the fast cutting of metal sheets, including stainless steel, carbon steel, manganese steel, galvanized sheet, alloy sheet, and rare metals. It is widely used in kitchen appliances, electric control boxes, mechanical equipment, electrical equipment, lighting, auto parts, display equipment, hardware processing.

Package of Laser Source:

1. Strong water resit bottom in plywood.

2. Laser source (separated plywood case) and spare parts on the laser bed.

3. Corner protect by foam and fixed by protective film.

4. All covered by strong and hard protective film.

5. Vacuum packing.

6. Inside steel frame protector.

7. Plywood packing and steel strip outside fixed the box.8. Finishing packing by normal container or frame container.

Warranty :

1. 3 years for the whole laser machine except consumable parts.

2. Long life-time maintenance, after-sale department will offer 24/7 English/ Russian online support.

3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.

4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.

5. Certificate support: CE, FDA, SGS.
