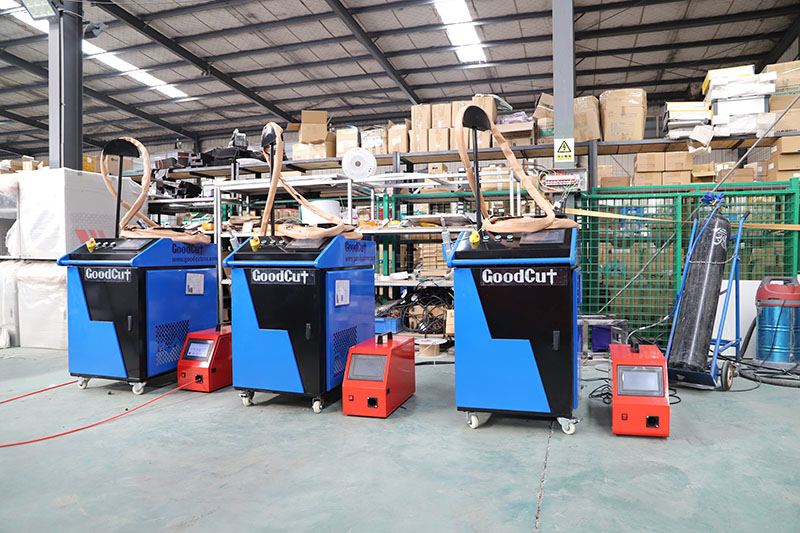

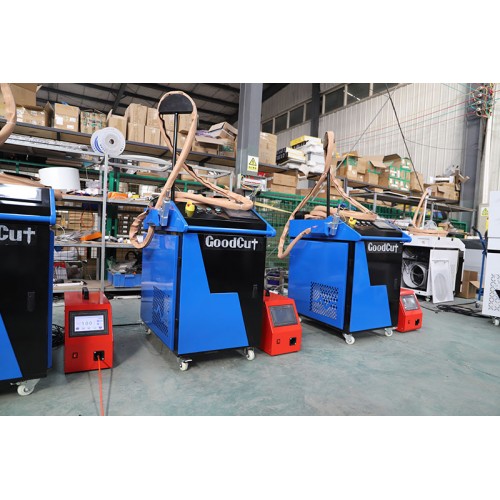

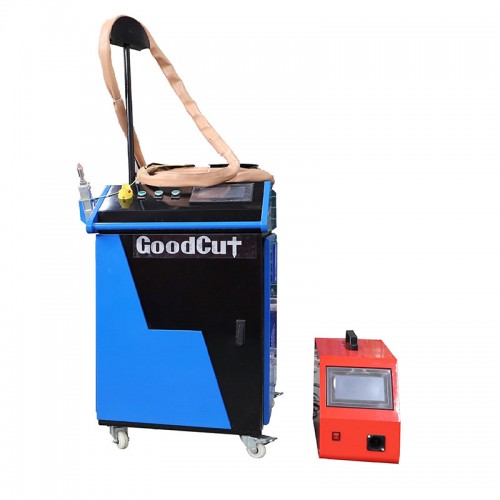

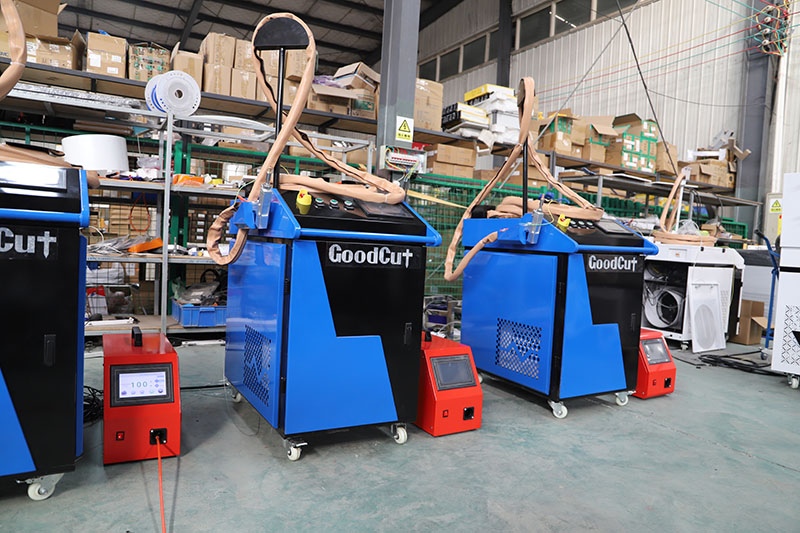

GC-WL GoodCut New Design High Level Fiber Laser Welding Machine 1000W 1500W 2000W 3000W
What Is Laser Welding Machine?
Laser welding machine is an eco-friendly power welding tool with handheld laser welding gun, CNC controller, or single-arm robot to join pieces of metals or thermoplastics.
Laser beam provides a concentrated heat source, which is used for spot welding, butt joint, lap joint, lap edge, lap, T butt, seam welding, narrow welds, deep welds, and kissing weld with high welding rates.
The process is frequently used in high volume applications with automation, which is based on keyhole or penetration mode welding.
Laser welding machines are engine driven welders used for a variety of applications from welding very small parts together commonly used by manufacturing businesses in the engineering, medical and electronics industries, through to welding thicker materials in the automotive and aerospace industries.
Laser welding is a versatile, low cost way of achieving high quality spot welds for different materials and thicknesses.
A laser welding machine is also known as laser beam welding machine, laser welder, laser beam welder, laser welder machine, laser beam welding equipment, laser beam welding gun, laser beam welding tool, seam welding machine, laser bonding machine, laser brazing machine, laser joining machine, laser soldering machine.
.jpg)
Parameters:
Model | GC-WL |
Fiber Laser source | Raycus 1000w 1500w 2000w |
Spare parts | Focus lens and Protective lens only |
Welding head | WSX |
Laser wavelength | 1064nm |
Weling min molten pool | 0.1mm |
Welding depth | ≤3mm |
Spot size adjustable range | 0.3-3.0mm |
Workbench repeatability | ±15kw |
Viewing system | Red light positioning |
Working table type | Optional |
Cooling | Water cooling |
Maximum pulse | 100J |
Peak power | 9.9KW |
Operating Temperature | 0-45℃ |
Operating humidity | 5%-95% |
Graphic Format Supported | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
Opearation System | Win98/Win2000/WinXP |
Net Weight | 200KG |
Dimensions | 1200x700x950mm |
Warranty | Two year |
Voltage | AC220V±10%/50Hz/60A |
Machine Size | 1200*700*950mm |
.jpg)
.jpg)
Feature:
1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small.
2. Through control the laser energy, the welding will not defrom or very few deformation.
3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.
4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.
5. Long life span up to 100,000 hours and low comsumption.
6. the Auto wire feeding handheld welding machine can weld parts with wider gap.
7. With a 8-15m fiber line, It can weld long-distance and large- area parts.
8. Various welding processes, such as spot welding, seam welding and overlap welding.
9. The welding efficiency is around 5 times of TIG welding.
10. It is welding used in electronics, sheet metal, air condiction industry etc.
.jpg)
.jpg)
.jpg)
Deatiled parts:
No consumables, small size, flexible processing, low operating and maintenance costs.
High cooling rate, which can weld fine weld structure and good joint performance.
Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.
Chinese top brand fiber laser source Raycus, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.
With auto layout optimization, ensure high speed operation of whole machine.
.jpg)
Application:
1. Material
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.
2. Welding
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
