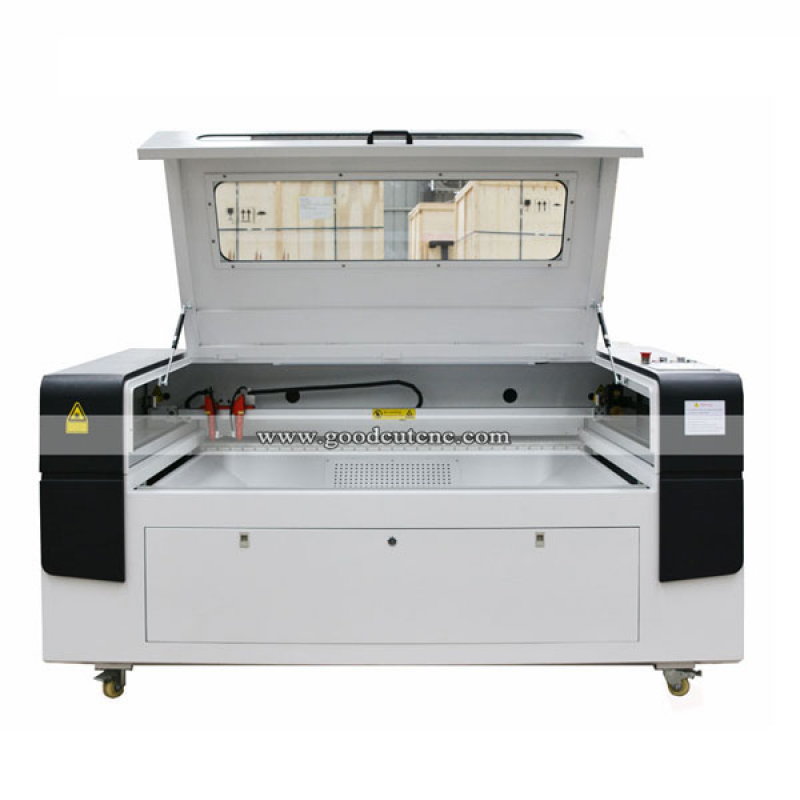

GC1390L-2H New Design CO2 Laser Machine With Double Heads
Double heads co2 80w 100w 130w 150w wood laser cutting and engraving machine
1) Red dot positioning Synchronize with the laser, which make the operation more convenient.
2) Ensure the accuracy higher than similar models on the market.
3) Knives and cellular dual cutting platform can meet the cut requirement of a variety of products.
4) DSP control system and Ruida board can ensure the engraving and cutting task completed quickly at one time.
5) Make the processing of various thickness material more convenient.
6) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.
Double heads co2 laser cutting and engraving machine:
1, Double laser heads
High efficient and high quality cutting nonmetal
2, Ruida control system
China top quality control system, and easy to learn and operation.
3, Lasar tube
Laser tube with international warranty. Recommend suitable laser power based on application materials and thickness.
4, High quality guide rail
Adopted square guide rail, with high positioning accuracy for a longer time.
5, High quality ball screw transmission
Best quality ball screw, with high positioning accuracy.
6, Control box
Reasonable layout, clean and efficient design, it convenient for machine repair and maintenance.
Features & Advantages of Dual Head Entry Level CO2 Laser Cutter for Paper & Cardboard
1. Taiwan HIWIN square linear guide rail installed on X Y axis, make sure the works stably and precisely.
2. The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the machine from quivering, resonance and distortion during long term work.
3. New-style high-efficiency RECI laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
4. Red dot position system is added in standard configuration, contributing to simple and precise working position.
5. Advanced LCD Screen+ USB port+ Offline Control,with professional motion control chip, has the function of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.6. USB offline control system makes the operation more convenient and faster.7. Automatic up-down table can be chosen for thick materials and high objects
Laser model | GC1309L-2H |
Cutting area | 1300*900mm |
Machine dimension | 1900*1130*1140mm |
Packing dimension | 1900*1200*1200mm |
| Laser tube brand | Beijing Reci EFR
|
Laser type | CO2 glass laser tube |
Laser power | 60W,80W,100W,120W,130W,150W |
Cooling way | Water cooling |
Laser energy control | 0.1~100% set by sofyware and HMI |
Speed control | 0.1~100% set by sofyware and HMI |
Location accuracy | ±0.01mm |
Engraving speed | 0~60000mm/min |
Cutting speed | 0~40000mm/min |
Control system | Ruida controller/ |
Operating enviroment | Windows98/2000/XP/WIN7/8,vista |
Standerds parts | Knife blade working table,water pump,air pump,air exhusted fan etc. |
Optional parts | Honeycomb working table,red dot pointer,CW 3000/CW 5000 water chiller |
Spare parts | Laser tube,mirror and lens |
Double heads co2 80w 100w wood laser cutting and engraving machine:
1. Model : GC1290, GC1390, GC1410, GC1610
2. Working size: 1200x900mm, 1300*900, 1400*1000, 1600*1000mm
3. Laser tube power: 80w /100w /130w/150w option
4. working table : blade table/honeycomb table
5. leadshine motor and driver
7. Ruida control systems
8. Industry chiller cw3000/cw5000/cw5200 option
9. One head or two head option
10. This kind of machine most suitable material garment, fabric, leather, paper etc
Double heads
Water Cooler
Model: CW3000/CW5000/CW5200
RECI laser tube :
Unique Mirrors and Lens Cooling Technology
RuiDa Controller
>>Applicable Materia
Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,
embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:
Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc
